Allegro 17.4 Production of Solder Pads and Packages

Allegro 17.4 Production of Pads and Packages#

Production of Pads#

image-20230601113558425

The stamp hole is a semicircle with a radius of 0.5mm. Therefore, we draw a rectangular pad as an example of a vertical line. The left side is 0.7mm and the right side is 0.7mm, which is a total of 1.4mm. Therefore, we create a surface mount pad with a width of 1.4 and a height of 1.0 (for side pads, swap the width and height for bottom pads).

Open the pad creation software Padstack Editor

image-20230601115712897

image-20230601115945156

Set library path

Set units and grid

Set text parameters

Package composition elements

Place pads

Add package silkscreen

Cut silkscreen lines

Add REF

Draw Place Bound region

Add Route Keepout region

Change units

image-20230601151122570

image-20230601153737530

image-20230601153911309

BEGIN LAYER Top Layer

DEFAULT INTERNAL Middle Layer

END LAYER Bottom Layer

image-20230601155041985

SOLDERMASK_TOP Solder Mask Layer generally larger by 0.1

SOLDERMASK_BOTTOM Solder Mask Layer generally larger by 0.1

PASTEMASK_TOP Stencil Layer

PASTEMASK_BOTTOM Stencil Layer

image-20230601155250198

THS1R84D1R02 interpretation: TH through-hole, S square (C circular), outer diameter 1.84mm, hole diameter inside D is 1.02mm

For through-hole pads, we generally increase the physical hole diameter by 0.2. The value given by the PCB layout generally does not need to be increased.

Production of Packages#

image-20230601163542180

Change units#

image-20230601163614564

image-20230601163644679

image-20230601163729598

Change font#

image-20230601163757211

image-20230601164424199

0.508 0.635 0.127 0.127 0.127

Change grid#

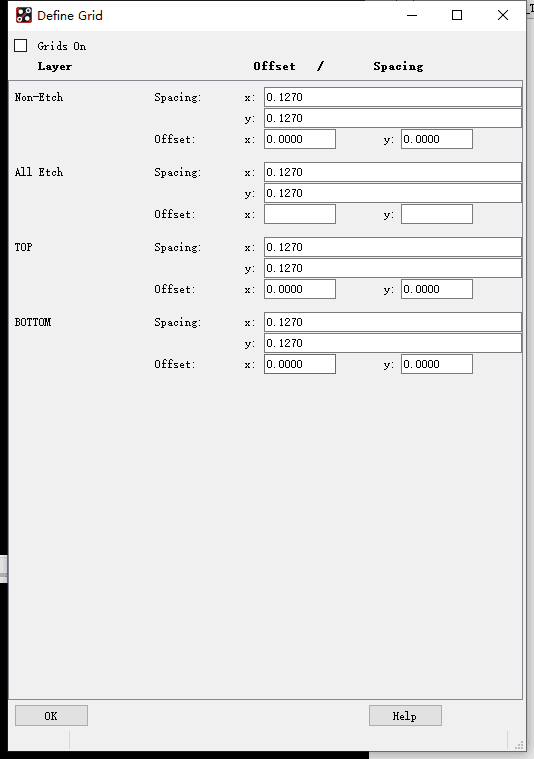

Setup->Grids Change grid size to 0.127mm (5 mil)

image-20230601174234173

Add pads#

image-20230601164721809

Enter coordinates command in the lower left corner

X space x space y (x, y are coordinates, e.g. X -8.89 0)

image-20230601171941218

Draw silkscreen#

Click Lin, select top silkscreen, line width 0.15mm

image-20230601172550627

Geometry package for silkscreen -> Top Silkscreen_Top

ASSEMBLY_TOP Top Assembly Layer

image-20230601172959405

Set coordinates, ix for x coordinate offset (negative for left, positive for right), iy for y coordinate offset (positive for up, negative for down)

Add reference designators#

image-20230601173327831

image-20230601173523107

image-20230601173447230

Enter character REF, copy it to the silkscreen layer (if unable to copy, enter two REF characters, change one to silkscreen layer, and the other to assembly layer, overlap the two characters)

image-20230601173732302

Add placebound region#

image-20230601174046880

Select Place Bound

image-20230601174133647

Just select the silkscreen part

image-20230601174443590

Pin colors can also be changed#

Select Pin-> Top, left-click to modify color

image-20230601174721836
